Professional Paint Cabin - Run your own Paint Shop
Professional paint lines for the highest demands. State-of-the-art technology, optimal efficiency, perfect results. Increase your productivity and revenue. Contact us for a quote!
A paint booth uses a sophisticated air circulation system to maintain a dust-free environment. Air is drawn in through filters, passed over the vehicle being painted, and then exhausted through additional filters to remove overspray and volatile organic compounds (VOCs). This process ensures a consistent, high-quality paint finish while minimizing environmental impact.
Save Time
Efficient
High-Quality
User Friendly
How it works
Achieve a flawless paint finish every time with a paint booth. Our booths provide a clean, dust-free environment, ensuring professional results and minimizing rework. Efficient airflow systems remove overspray, leading to less waste and improved efficiency.

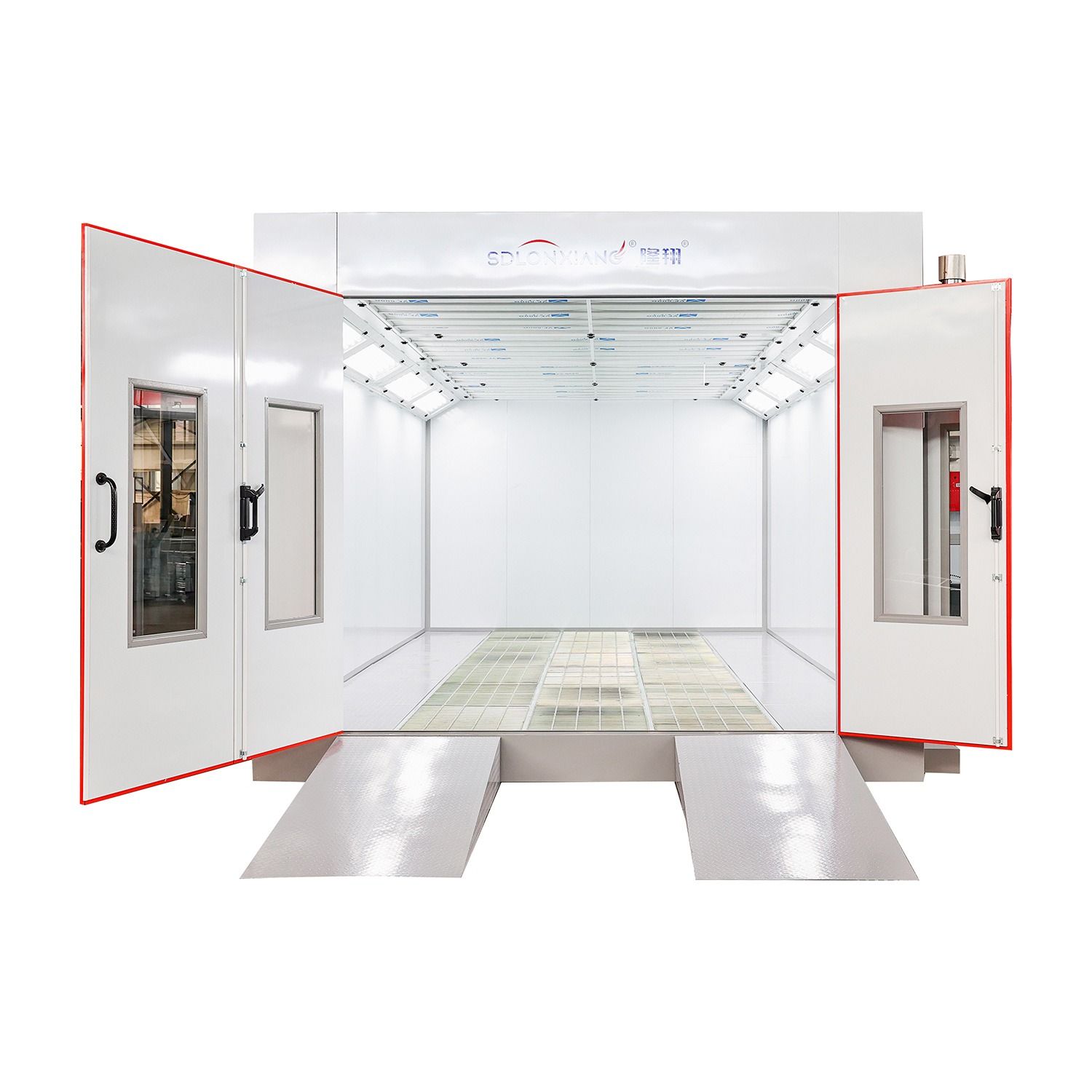

Professional paint cabin for the highest demands
Size
Outside Size:
7000x5350×3400mm (LxWxH)
Inside Size:
6900x3900×2650mm (LxWxH)

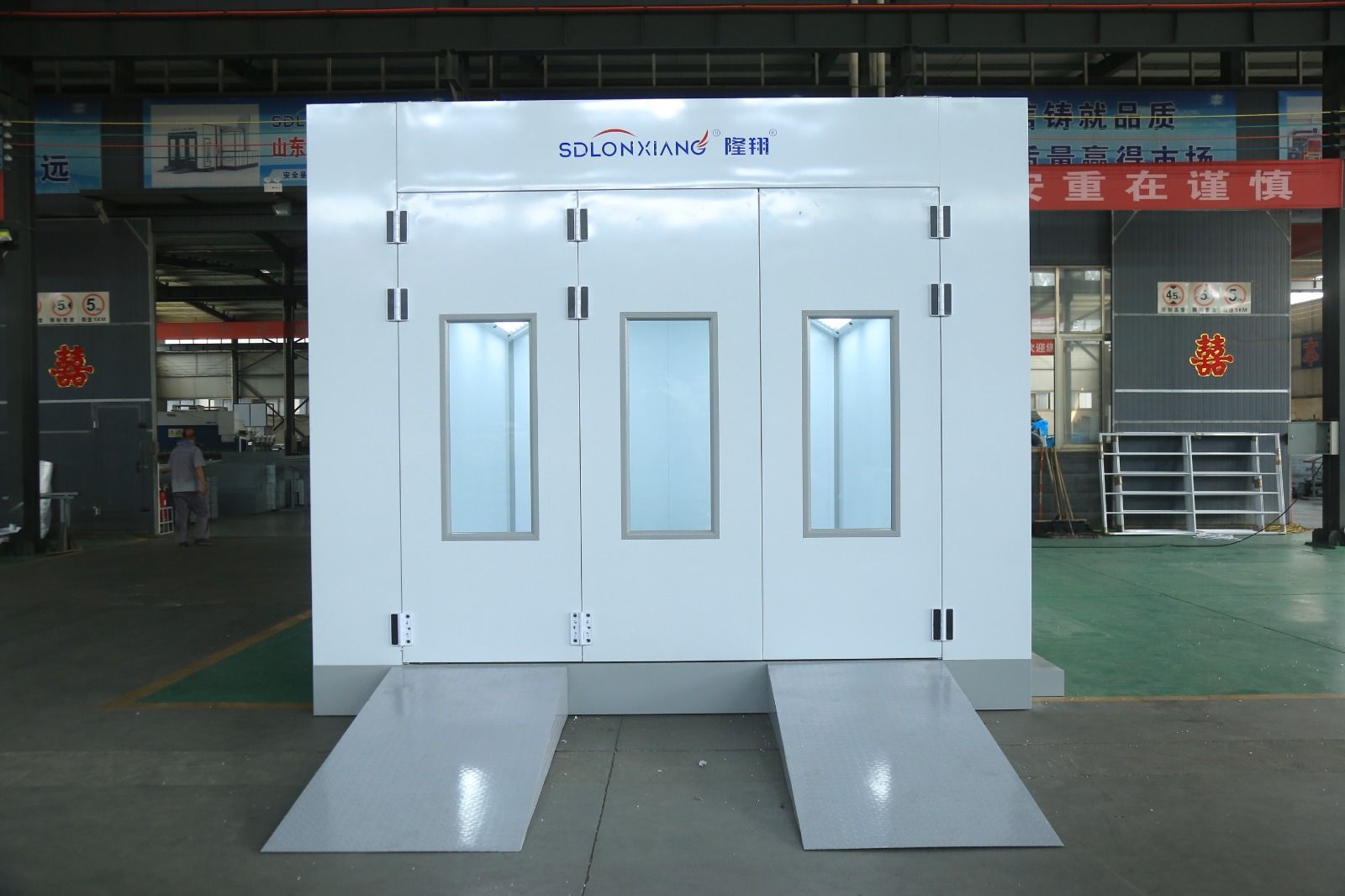

Entrance Door:
3 folds,3000x2600 mm(WxH), it is bending steel without cover frame.
This type is very strong and beautiful. Also equipped with handle & lock
Emergency Door:
1 fold, 650*2000mm(W*H), equipped with handle lock
Cabin System
Wall panel:
High quality double construction insulation EPS panel, thickness: 50mm.
High quality galvanized steel roof panel
Basement:
Galvanized steel assemble, full metal foundation, height is 280mm
3 rows flat steel Grilles (galvanized)
2 rows metal non-slip Diamond plates (powder coating)
2 pieces of Ramps, each size 620×2000mm (WxL), diamond plate construction

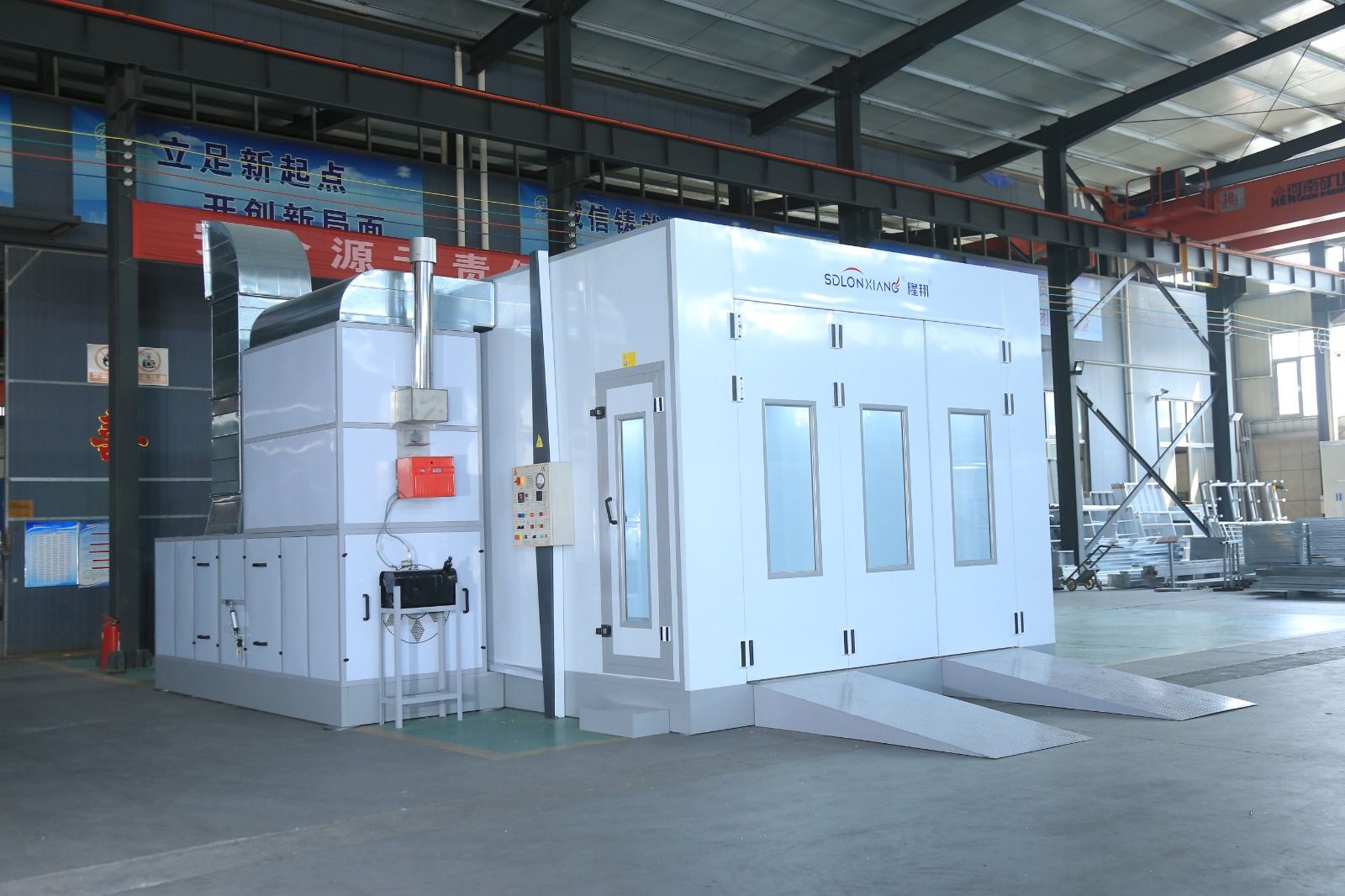

Ventilation System
Inlet/Outlet fan:
1*7.5K W Turbo fan, air capacity: 25000m*/h
Cabinet setting type:
Intake air from side upper ,adopt powder quadrate steel frame, strong and beautiful air duct*2m long* lunit, Elbow: 90°* 1 unit
Pneumatic damper actuates from the spraying to baking cycle
Heating & Filter System
Heating:
1set: Italy RIELLO G20 diesel burner, heating productivity: 200000kcal/h
Adopt high efficient heat-resistant stainless steel as cycling heat exchanger
Filtering:
Primary filter:
Grade G2 plate type, filtering rate >83%
Ceiling Filter:
EUS grade high efficient filter, filtering rate >98%
Floor Filter:
Multi-layer fiberglass filter, filtering rate >70%
